Nonwoven Extrusion Coating Line

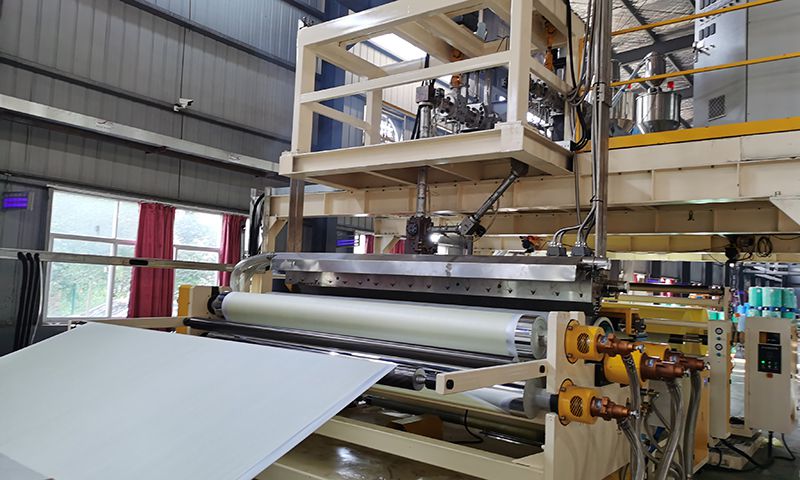

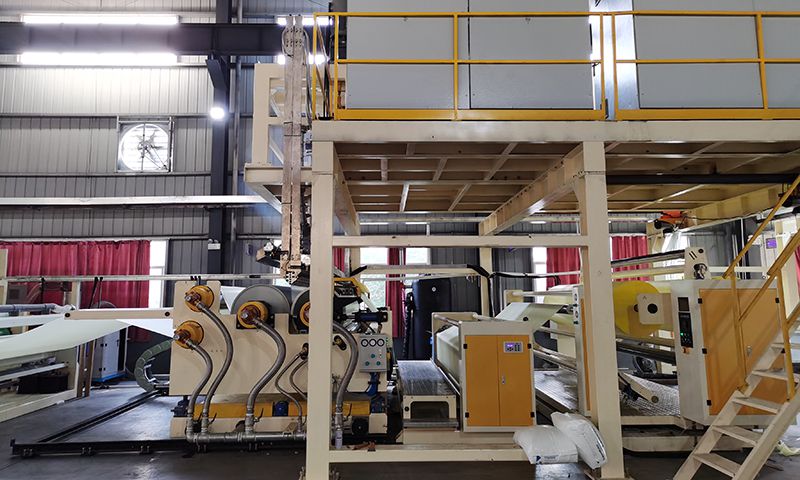

The nonwoven extrusion coating line is equipped with high-performance extruder, chrome-plated chill roll, and fully-automatic unwinder and rewinder. The extruder coats PE polymer materials onto a substrate of nonwoven fabric and make PE + nonwoven composite materials without using any glue.

This nonwoven coating machine can also be equipped with 2 or 3 extruders, to make sandwich laminating or double-sided coating. The final product thus has all the properties from both nonwoven fabric and PE polymer, for example, textile feeling, water proof etc.

Applications of the Nonwoven Extrusion Coating Line
The typical application of nonwoven coating or nonwoven laminating machine will be textile-like diaper backsheet, table cloth, nonwoven bag, medical gown, medical drapes, hospital products etc.

Technical Parameters of the Extrusion Coating Machine for Nonwoven
1) Product width range: 1200-3000mm
2) Coating resin: LDPE, LLDPE, EVA
3) Substrates: nonwoven fabric, woven fabric
4) Diameter of unwinding: Φ1200mm
5) Diameter of rewinding: Φ1000mm
6) Line speed: 180m/min

Related Names:
Nonwoven coating machine, nonwoven laminating machine, extrusion coating machine for nonwoven
